Portable biogas analyzer

  • Portable Biogas Analyzer CH4/CO2/H2S/O2/H2
  • Portable Biogas Analyzer CH4/CO2/H2S/O2/H2
  • Portable Biogas Analyzer CH4/CO2/H2S/O2/H2
Portable Biogas Analyzer CH4/CO2/H2S/O2/H2Portable Biogas Analyzer CH4/CO2/H2S/O2/H2Portable Biogas Analyzer CH4/CO2/H2S/O2/H2

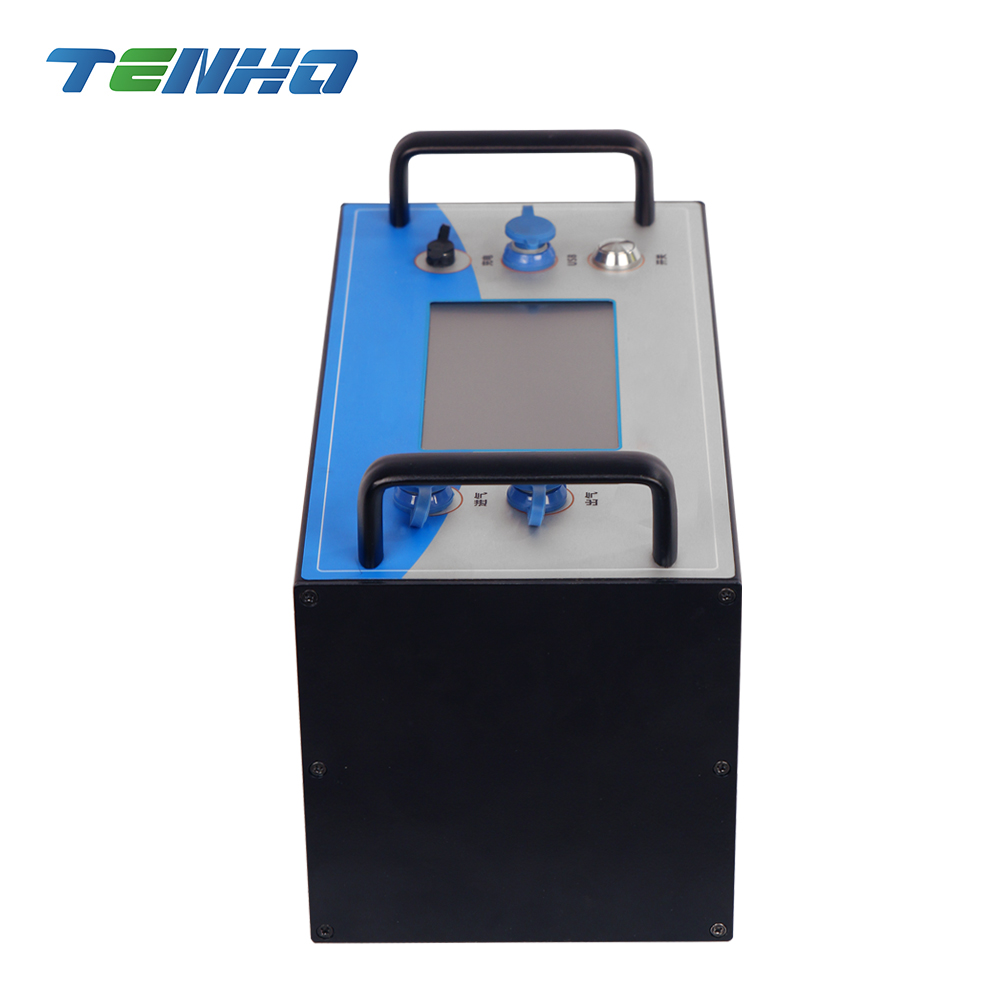

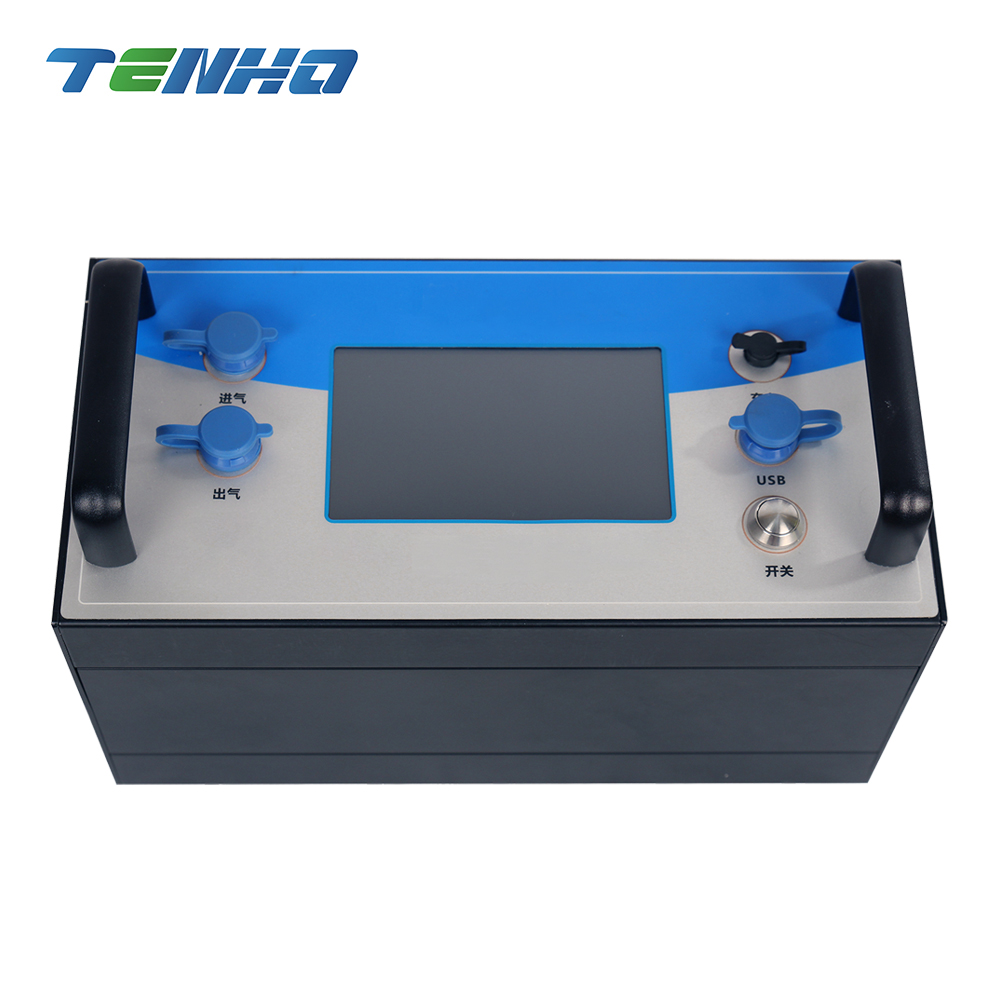

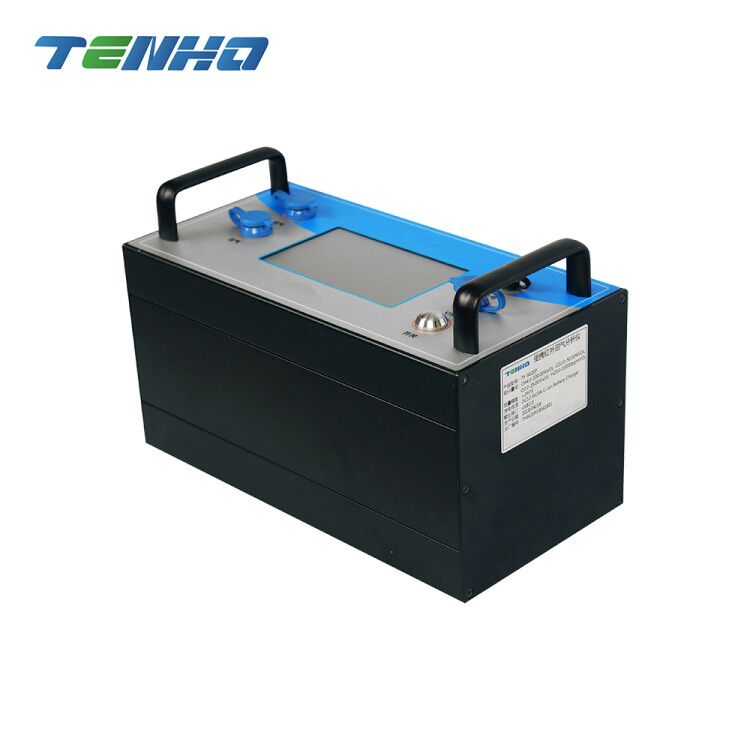

Portable Biogas Analyzer CH4/CO2/H2S/O2/H2

  • measurement:CH4, CO2, O2, H2S (extendable to CO,H2)
  • weight:3kgs
  • Display: colorful touch screen
  • Output: RS232/RS485/USB
  • Product description: The Portable BIO-400 adopts the imported gas sensor by electrochemical sensor of oxygen and hydrogen sulphide, methane and carbon dioxide measured by non dispersive infrared gas sensor NDIR principle.
  • INQUIRY

I. Introduction

The Portable BIO-400 adopts the imported gas sensor by electrochemical sensor of oxygen and hydrogen sulphide, methane and carbon dioxide measured by non dispersive infrared gas sensor NDIR principle.

II. Features

Using 5'' TFT LCD touch screen

Measurement value display/real-time curve display

Aluminum enclosure with smart dimensions (270*215*136mm, 3kgs)

Data record, interval time adjustment, USB output to display history data

Power intelligent management protect gas analyzer working at low battery

Calibration menu and alarm setting with password protection

One set back to factory setting

III. Specifications

Measurement

CH4, CO2, O2, H2S (extendable to CO,H2)

Technology

CH4 , CO2: proprietary dual beam NDIR detectors

O2 ,H2S: industrial electrochemical cell

Ranges

CH4: 0-100%, CO2 : 0-50%, O2: 0-25%, H2S:0-9999ppm

Other ranges customizable on request without price increase

Resolution

0,01% for CH4, CO2, O2; 1ppm for H2S

Accuracy

CO2/CH4/O20.01%H2S1ppm

Repeatability

CO2/CH4/H2S/O2:≤1%FS

Gas conditions at analyzer inlet

Flow:0.7L-1.2/min, internal gas sampling pump

Pressure:2kPa≤ inlet pressure≤ 50kPa

Quality: No dust, moisture, tar (external safety filter and optional gas washing unit)

Operating conditions

Tamb : -5°C to 50°C / Pamb : 86 to 108 kPa / RH : 0-90% non-condensing

Response time (T90)

15 sec (NDIR)

Communication interface

USB output; RS232/RS485

Power supply

External 220 VAC-50Hz Internal with lithium battery and charger

Dimensions and weight

Gas analyser :270(L) x 215 (H) x 136 (W) mm / ± 3kg

IV. Applications


  • Landfill
  • Sewage treatment
  • Anaerobic digestion
  • CDM projects
  • Medium and large size biogas power plant
