Portable syngas analyzer

  • Portable Six Gas Analyzer CH4/CO2/CO/O2/H2/CxHy
  • Portable Six Gas Analyzer CH4/CO2/CO/O2/H2/CxHy
  • Portable Six Gas Analyzer CH4/CO2/CO/O2/H2/CxHy
Portable Six Gas Analyzer CH4/CO2/CO/O2/H2/CxHyPortable Six Gas Analyzer CH4/CO2/CO/O2/H2/CxHyPortable Six Gas Analyzer CH4/CO2/CO/O2/H2/CxHy

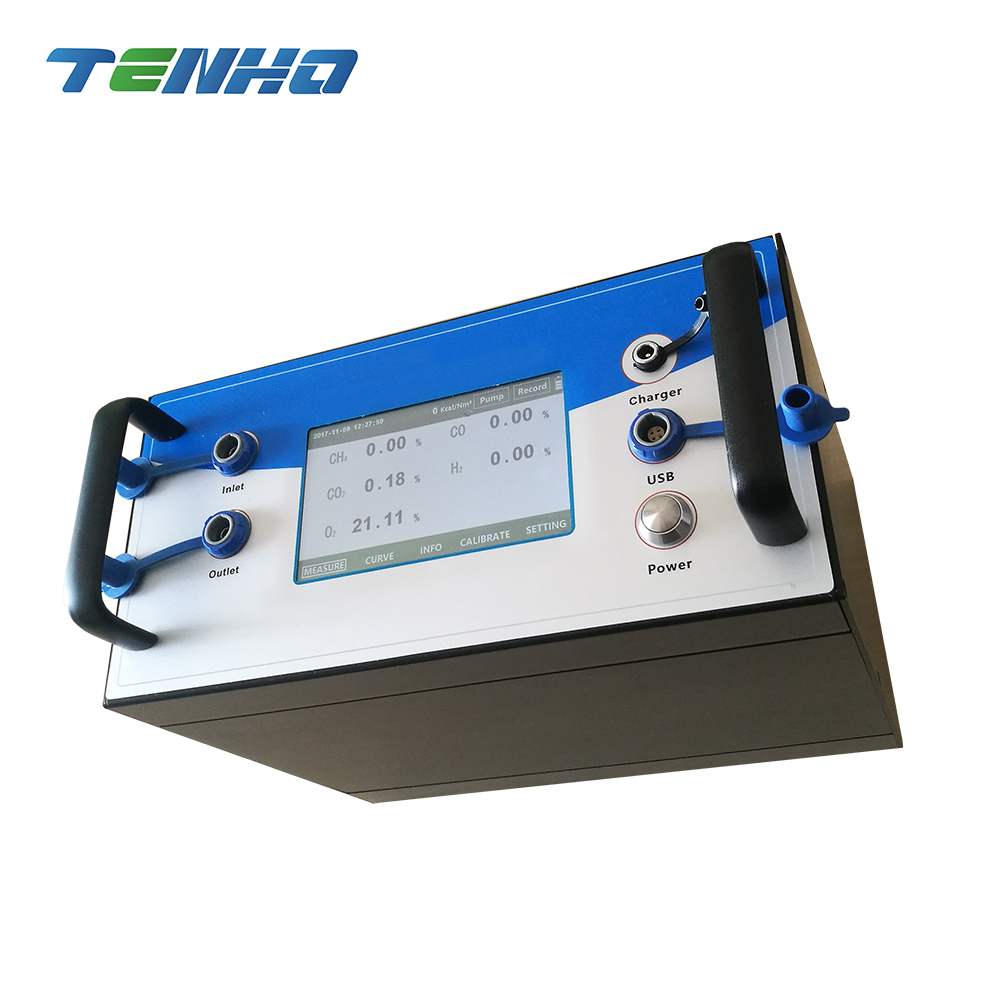

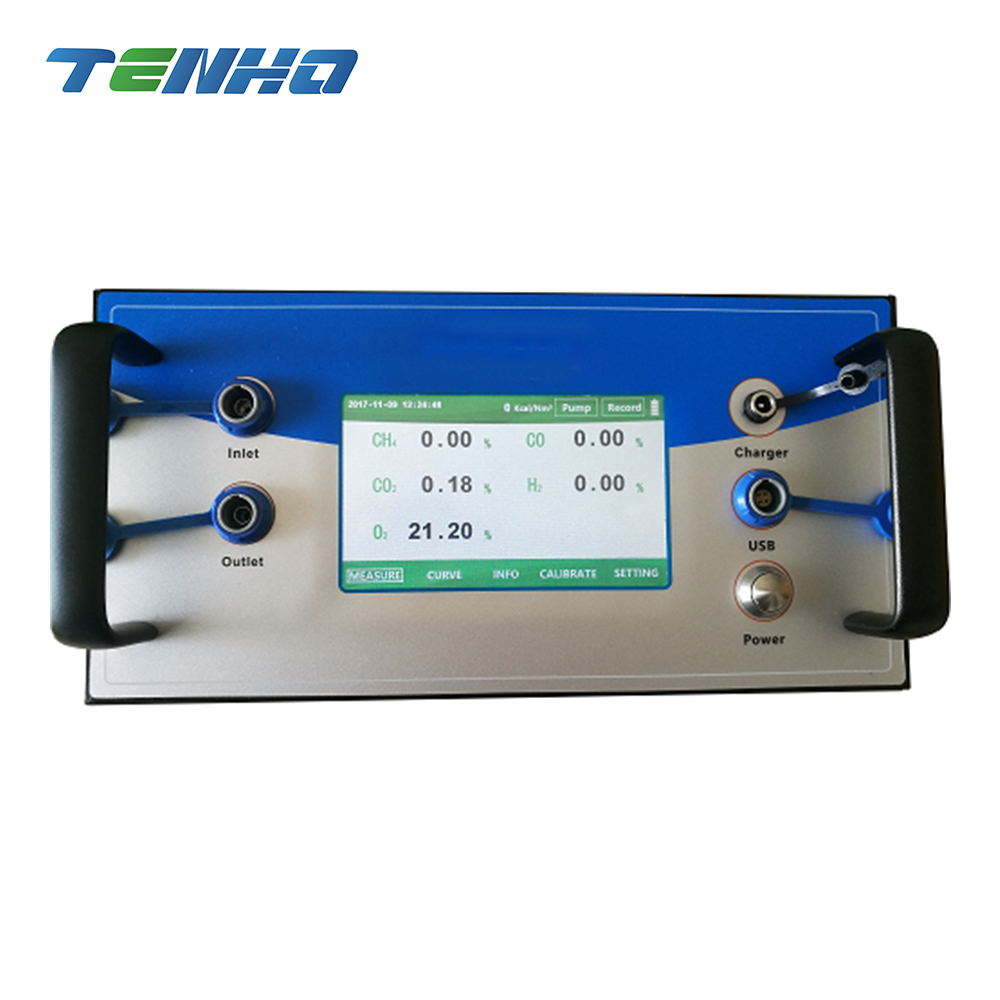

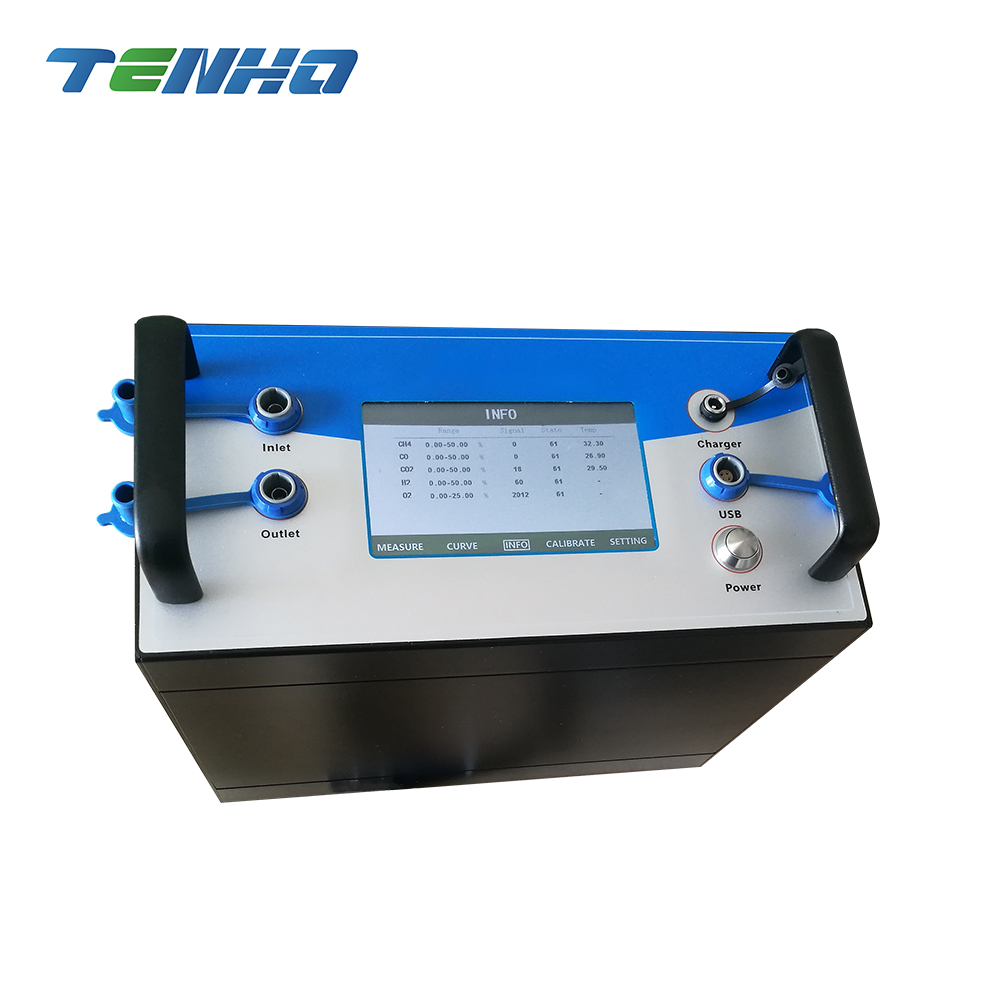

Portable Six Gas Analyzer CH4/CO2/CO/O2/H2/CxHy

  • Detecting Gas: CH4,CO2,CO,CnHm,O2,H2
  • Measure Range: 0%vol-100%col
  • Weight: 3kgs
  • Product description: The Portable SYN-600 adopts the imported gas sensor measurement using electrochemical sensor of oxygen, hydrogen measurement using MEMS TCD thermal conductivity sensor, methane and carbon dioxide, car
  • INQUIRY

I. Introduction

The Portable SYN-600 adopts the imported gas sensor measurement using electrochemical sensor of oxygen, hydrogen measurement using MEMS TCD thermal conductivity sensor, methane and carbon dioxide, carbon monoxide, measured using non dispersive infrared gas sensor NDIR principle (selected according to user needs).

II. Features

•       Using 5'' TFT LCD touch screen

•       Measurement value display/real-time curve display

•       Aluminum enclosure with smart dimensions (270*215*136mm, 3kgs)

•       Data record, interval time adjustment, USB output to display history data

•       Power intelligent management protect gas analyzer working at low battery

•       Calibration menu and alarm setting with password protection

•       One set back to factory setting

III. Specifications

Measurement

CO, CO2, CH4, CnHm, O2, H2 and gas calorific value calculation

Calculation

High Heating Value or Low Heating Value in MJ/m3 or kcal/m3

Technology

CO, CO2, CH4, CnHm: proprietary dual beam NDIR detectors

O2: industrial electrochemical cell

H2: MEMS thermal conductivity detector

Ranges

CO/ CO2:/CH4 / H2: 0-100%, CnHm : 0-10%, O2: 0-25%

Other ranges customizable on request without price increase

Resolution

0,01%

Accuracy

CO/CO2/CnHm/CH4:±2%FS;H2/O2:±3%FS

Repeatability

≤ 1%

Gas conditions at analyzer inlet

Flow:0.7L-1.2/min, internal gas sampling pump

Pressure:2kPa≤ inlet pressure≤ 50kPa

Quality: No dust, moisture, tar (external safety filter and optional gas washing unit)

Operating conditions

Tamb : -5°C to 50°C / Pamb : 86 to 108 kPa / RH : 0-90% non-condensing

Response time (T90)

≤ 15 sec (NDIR)

Communication interface

USB output; RS232/RS485

Power supply

External 220 VAC-50Hz Internal with lithium battery and charger

Dimensions and weight

Gas analyser :270(L) x 215 (H) x 136 (W) mm / ± 3kg

IV. Applications

  • coal chemical process
  • steel making process as blast furnace, converter, coking, direct iron
  • ore smelting reduction
  • syngas production from Biomass and coal gas gasification processes
