Gas filters

  • 0.1um Gas Filter with Compensating Connector J-02P0.1G075/J-02P0.1G075
  • 0.1um Gas Filter with Compensating Connector J-02P0.1G075/J-02P0.1G075
  • 0.1um Gas Filter with Compensating Connector J-02P0.1G075/J-02P0.1G075
0.1um Gas Filter with Compensating Connector J-02P0.1G075/J-02P0.1G0750.1um Gas Filter with Compensating Connector J-02P0.1G075/J-02P0.1G0750.1um Gas Filter with Compensating Connector J-02P0.1G075/J-02P0.1G075

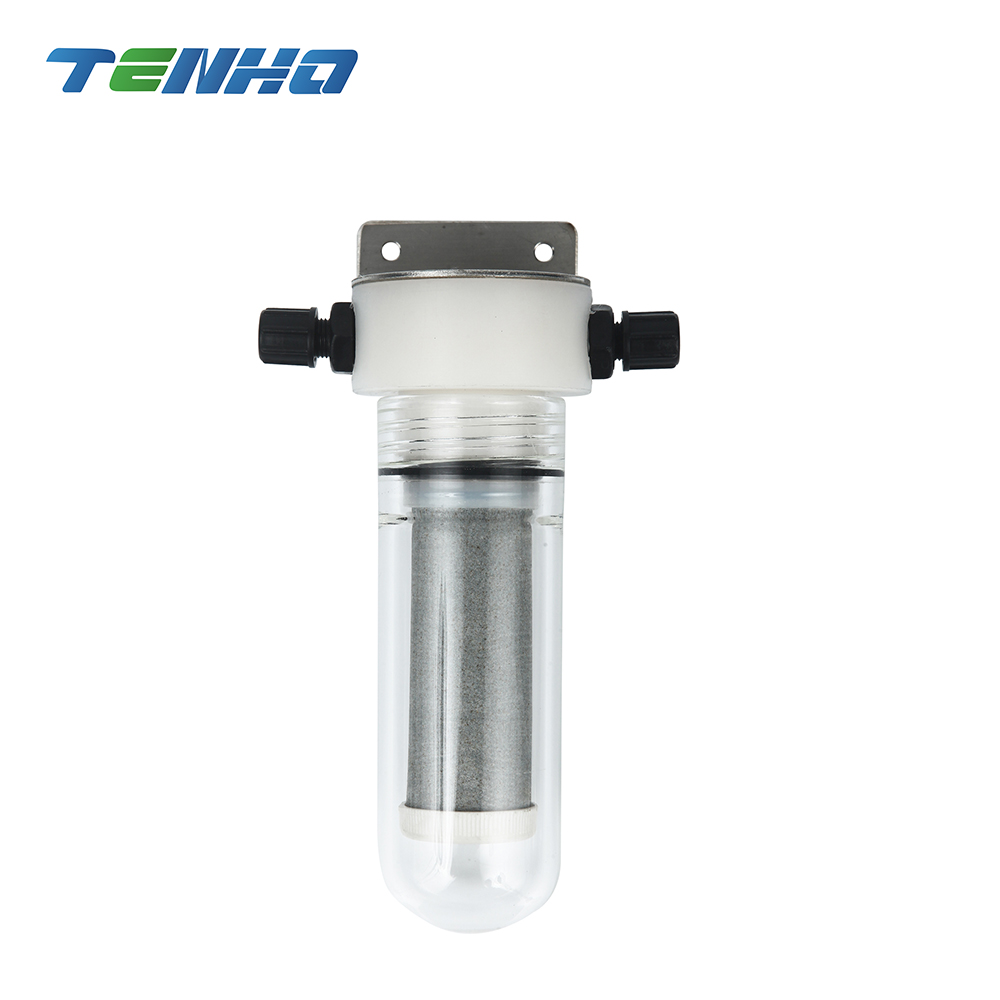

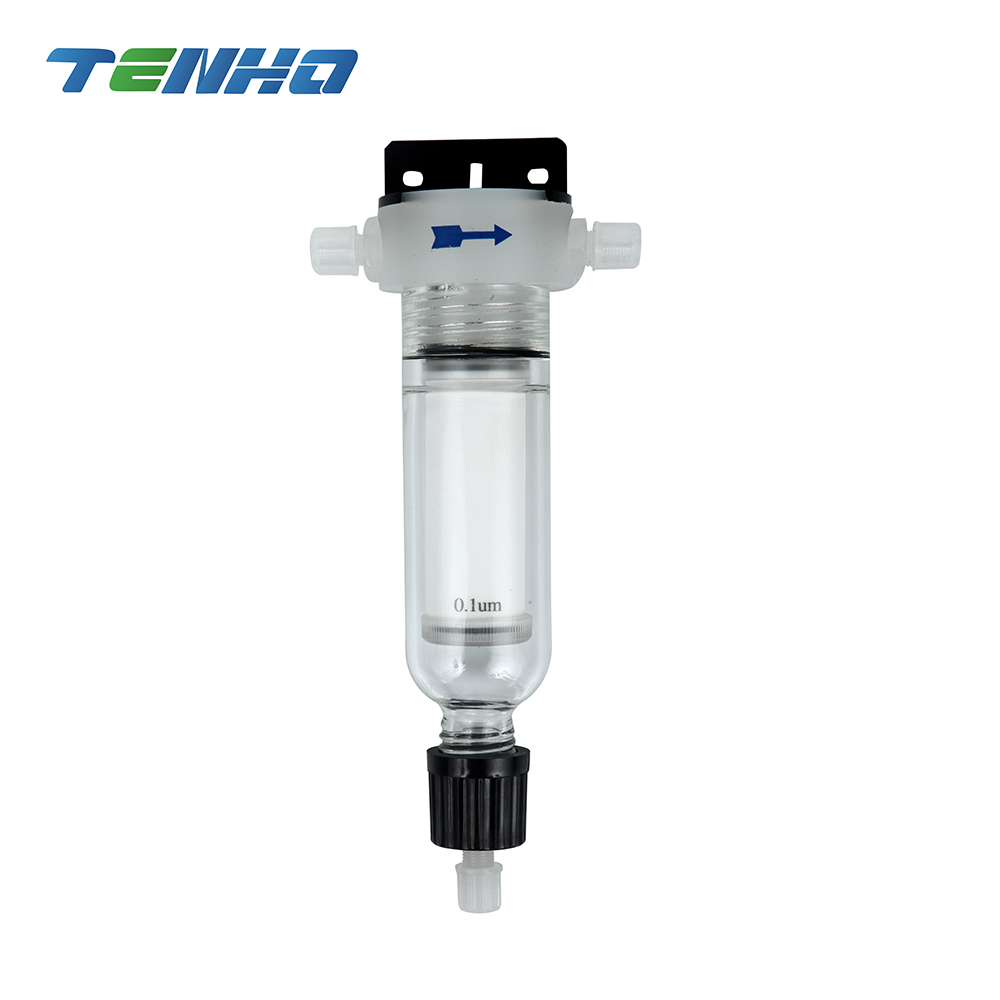

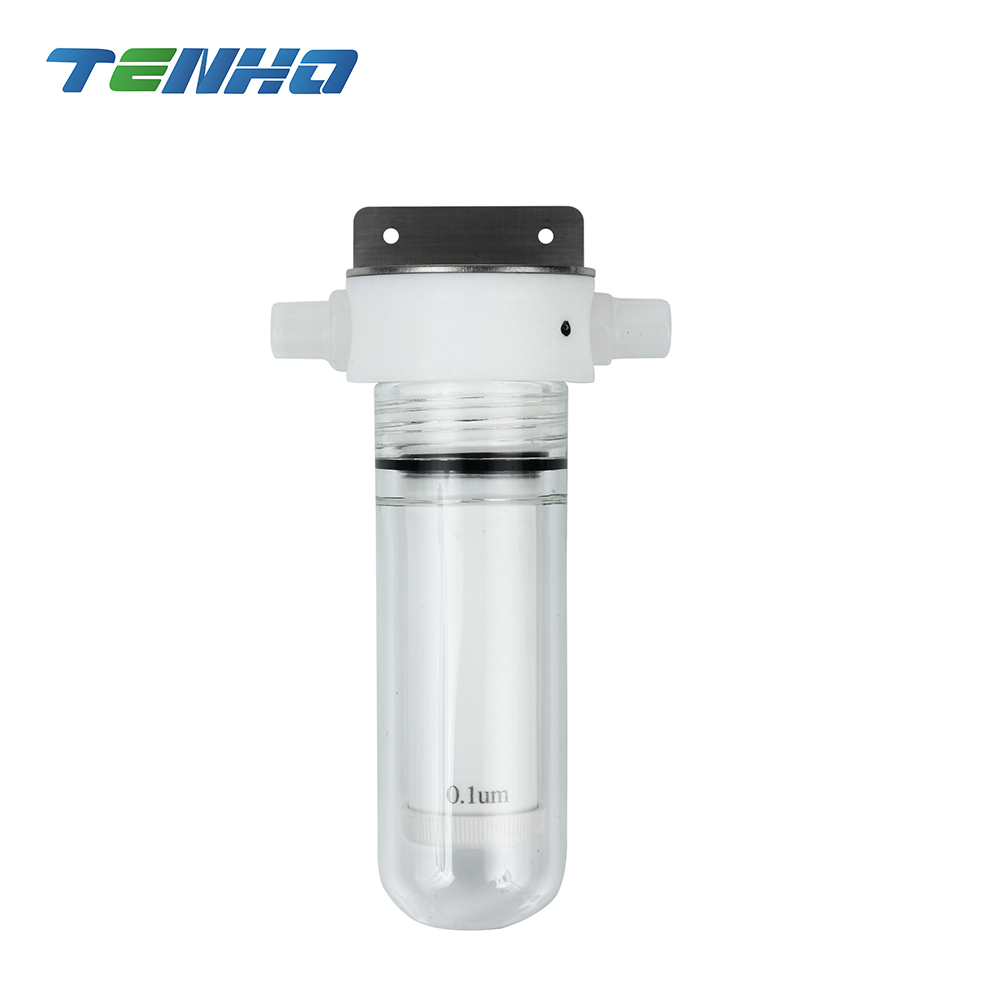

0.1um Gas Filter with Compensating Connector J-02P0.1G075/J-02P0.1G075

  • filtering accuracy:0.1um,0.5um,1um,2um optional
  • Product description:
  • INQUIRY

I. Technical characteristics:

• Special process glass cover is adopted, which is easy to replace and filter

• The filter core is visible and easy to change and clean

• Base material: PTFE/PP material optional

It can integrate the humidity alarm function, and effectively protect the analyzer

II. Technical parameter

• Sampling interface: PTFE G1/4-6mm

• Operating pressure: 5bar.abs

• Maximum capacity: 70cm3

• Filter material: glass fiber, silicon carbide(optional)

• Seal type: O type ring

• Bracket material: aluminum alloy

• Installation: wall mounted

• Filtration accuracy: 0.1-2um (optional)

• Alarm output: DC24V voltage output,It can be equipped with humidity sensor or connecting with peristaltic pump
